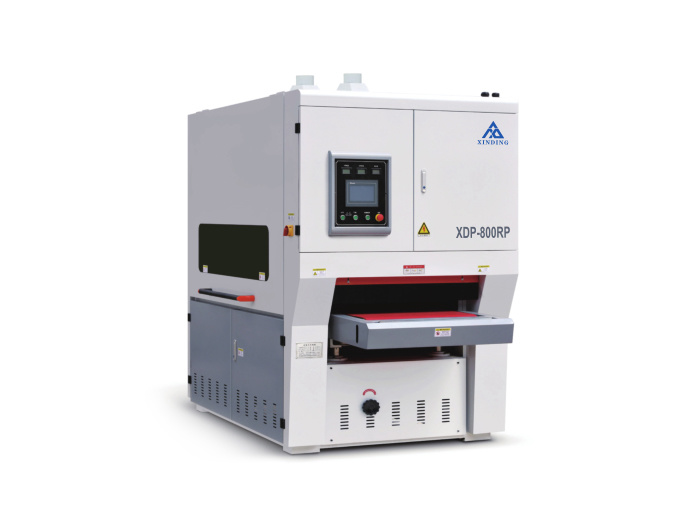

XDP-RP

Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
1
Product description

Application

800RP series working principle: This equipment is a through-type processing equipment. First, a group of wide sanding belt mechanism removes large burrs such as slag particles and large flanging on the surface of the workpiece, and then passes 2 groups of universal roller brushes. The roller brush combination revolves and rotates at high speed to remove the burrs on the edge of the workpiece and the inner hole and produce a uniform R angle (the size of the R angle can be achieved by choosing different processes and abrasive belts). At the same time, the abrasive belt station and universal roller The brush station can also operate independently: the independent operation of the abrasive belt station can realize the processing of wire drawing, polishing, descaling, and slag removal of the metal sheet surface; the independent operation of the universal roller brush can achieve 360 ​​degrees without dead corners. Burr processing. This equipment adopts high damping imported conveyor belt to convey the workpiece, frequency conversion speed regulation, and the conveying platform is equipped with an adsorption device. Configuration-a 5. 5KW wet vacuum cleaner, which sucks dust away when the host is working.

Suitable blanking process: laser cutting, plasma, flame, NCT blanking, die stamping, shear cold processing.

Suitable plates: stainless steel, aluminum plate, cold plate, carbon steel, coated workpiece, galvanized plate.

Basic parameters

Equipment processing width options: 800mm, 1000mm, 1300mm, 1600mm

Maximum processing width: 800

Processing thickness: 0.5-100mm

Minimum processing size: 50*50 (vacuum adsorption)

Feeding speed: 0.5-4m/min

Roller brush speed: 9-20r/min

Belt size: 1900x 820 mm

Roller brush size: φ300 x 300mm

Chamfering range: R0.1~0.5

Work surface: 900-980mm

Power: 30KW

Weight: 3.2T

Machine size: 2900mm*1600mm*2250mm
